暗装直座
313-4/323-4
16Amp | 32Amp | |||||

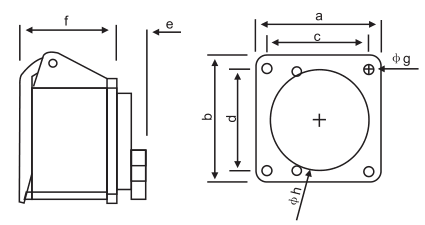

Poles | 3 | 4 | 5 | 3 | 4 | 5 |
a×b | 70 | 70 | 70 | 70 | 70 | 70 |
c×d | 56 | 56 | 56 | 56 | 56 | 56 |
e | 28 | 25 | 28 | 29 | 29 | 29 |
f | 46 | 51 | 48 | 61 | 61 | 61 |
g | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
h | 51 | 45 | 56 | 56 | 56 | 56 |
Wire flexible [mm²] | 1-2.5 | 2.5-6 | ||||
16Amp | 32Amp | |||||
Poles | 3 | 4 | 5 | 3 | 4 | 5 |
a×b | 70 | 70 | 70 | 70 | 70 | 70 |
c×d | 56 | 56 | 56 | 56 | 56 | 56 |
e | 28 | 25 | 28 | 29 | 29 | 29 |
f | 46 | 51 | 48 | 61 | 61 | 61 |
g | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
h | 51 | 45 | 56 | 56 | 56 | 56 |
Wire flexible [mm²] | 1-2.5 | 2.5-6 | ||||
